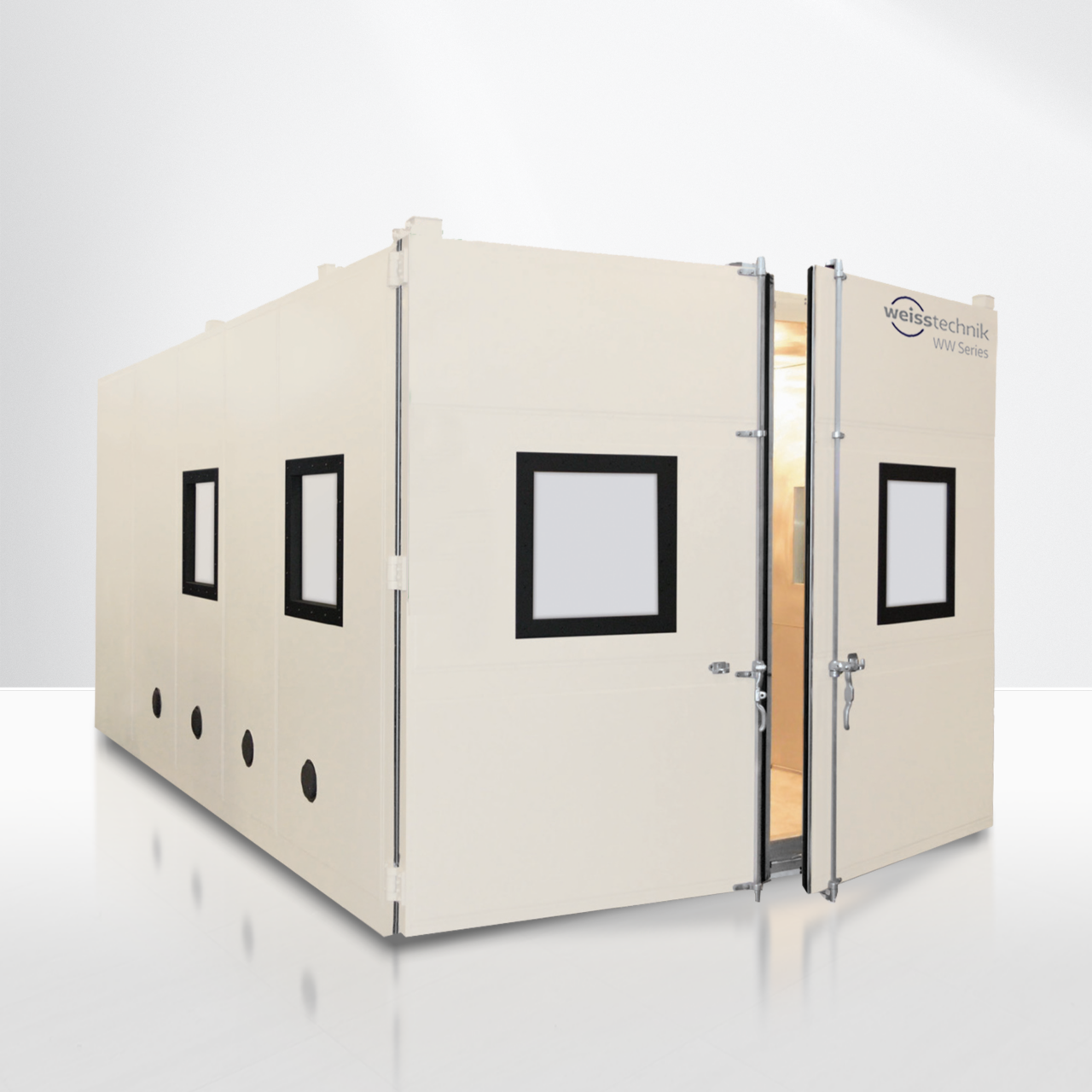

WW Series Welded Walk In & Drive In Test Chambers

Specifications

Model	WW/WWH420	WW/WWH512	WW/WWH1080	WW/WWH1728
Test Space Volume (Cu.Ft/Liters)	420/11839	512 / 14498	1080 / 30582	1728 / 48932
Temperature Range	-73°C to +180°C
Humidity Range	20%RH to 95%RH
External Width	84″ (2134mm)	108″ (2743mm)	132″ (3353mm)	156″ (3962mm)
External Depth	132″ (3353mm)	108″ (2743mm)	156″ (3962mm)	204″ (5182mm)
External Height	99″ (2515mm)	111″ (2819mm)	123″ (3124mm)	123″ (3124mm)

Range of personnel and vehicle door sizes
Pneumatic door latches
Product shelves
Interior fixturing
Machine Module Standard Features
Completely self-contained including heating, cooling, air circulation, and instrumentation systems
Dual air circulation blowers with solid stainless steel jackshafts and external motors
Water-cooled refrigeration packages standard; air-cooled systems optional
Nichrome wire heating elements with fusible link
Solid state heat switching
Stainless steel plenum
Compatibility with four post simulators or dynamometers
HC/CO monitoring of vehicle under test
Complete customized operator interface software package
Complete installation packages
Custom sizes available consult with your local salesperson
Many options available – contact your local salesperson for complete list
