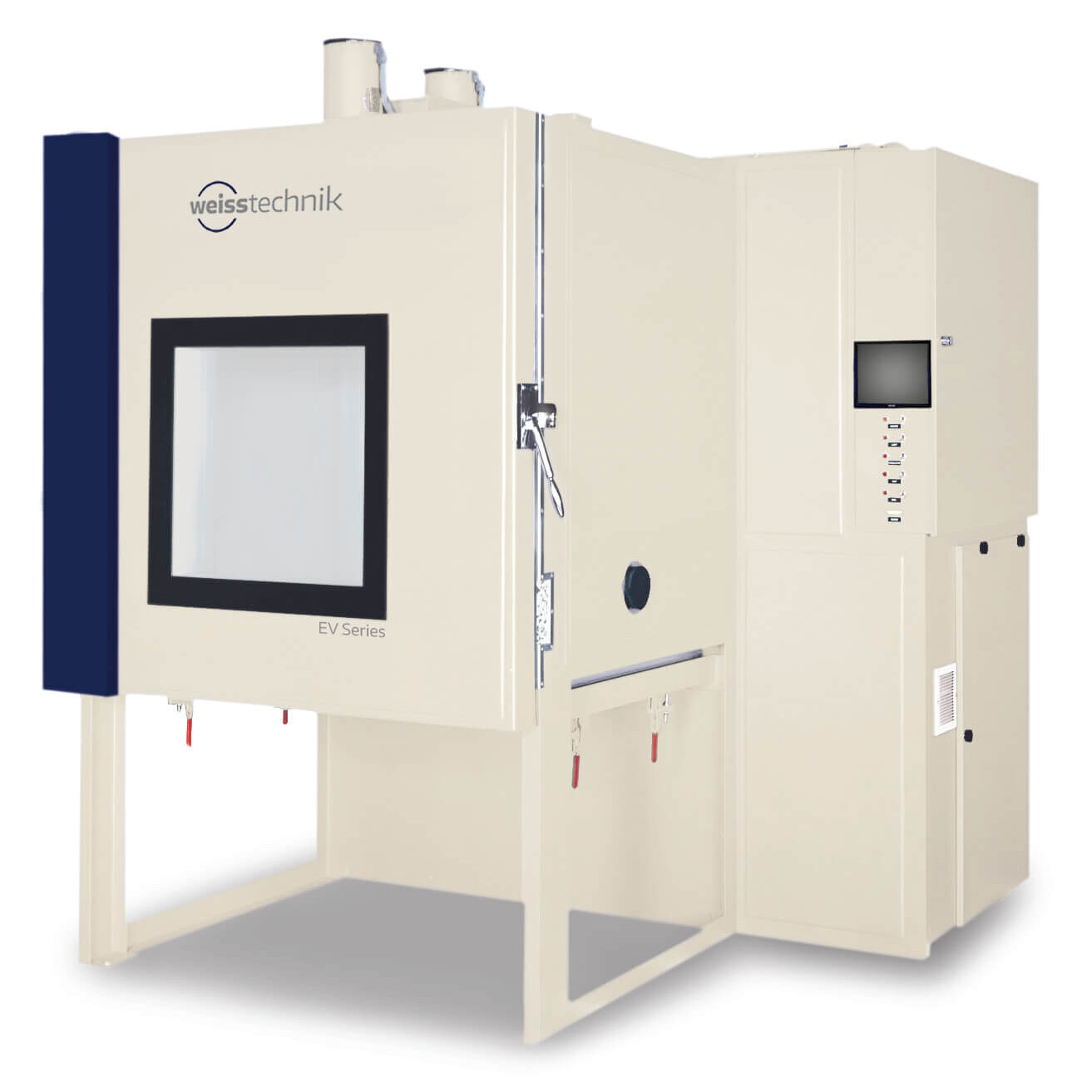

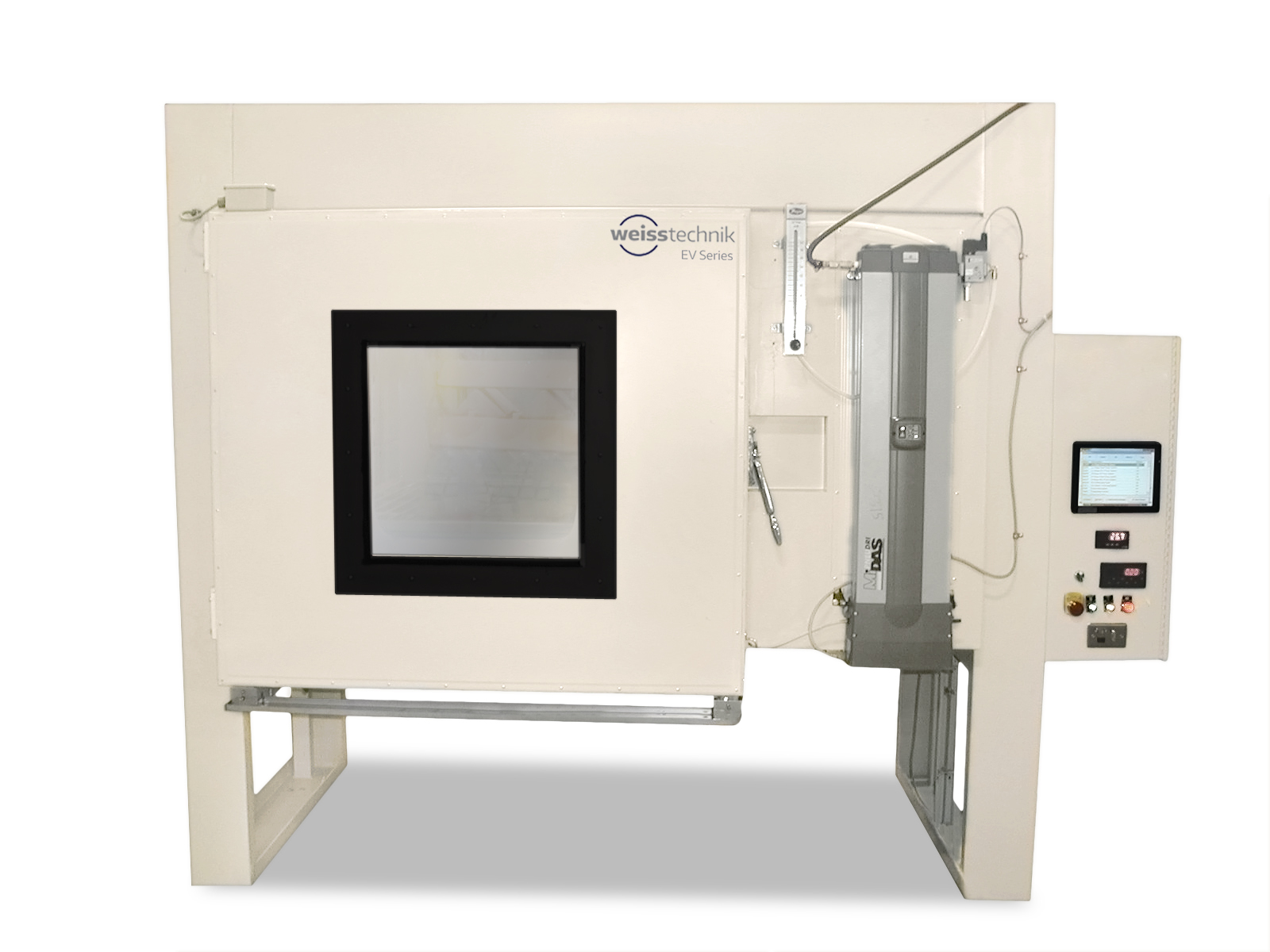

EV Series AGREE Vibration Test Chambers

The EV Series AGREE style chambers are offered in various sizes and accommodate electro-dynamic, mechanical vibration systems or roll-in product carts. The EV Series offers flexibility to be used as a test chamber with or without vibration tables.

  • Engineered to adapt to all vibration tables in the market
  • Dual door design available for easy loading/unloading

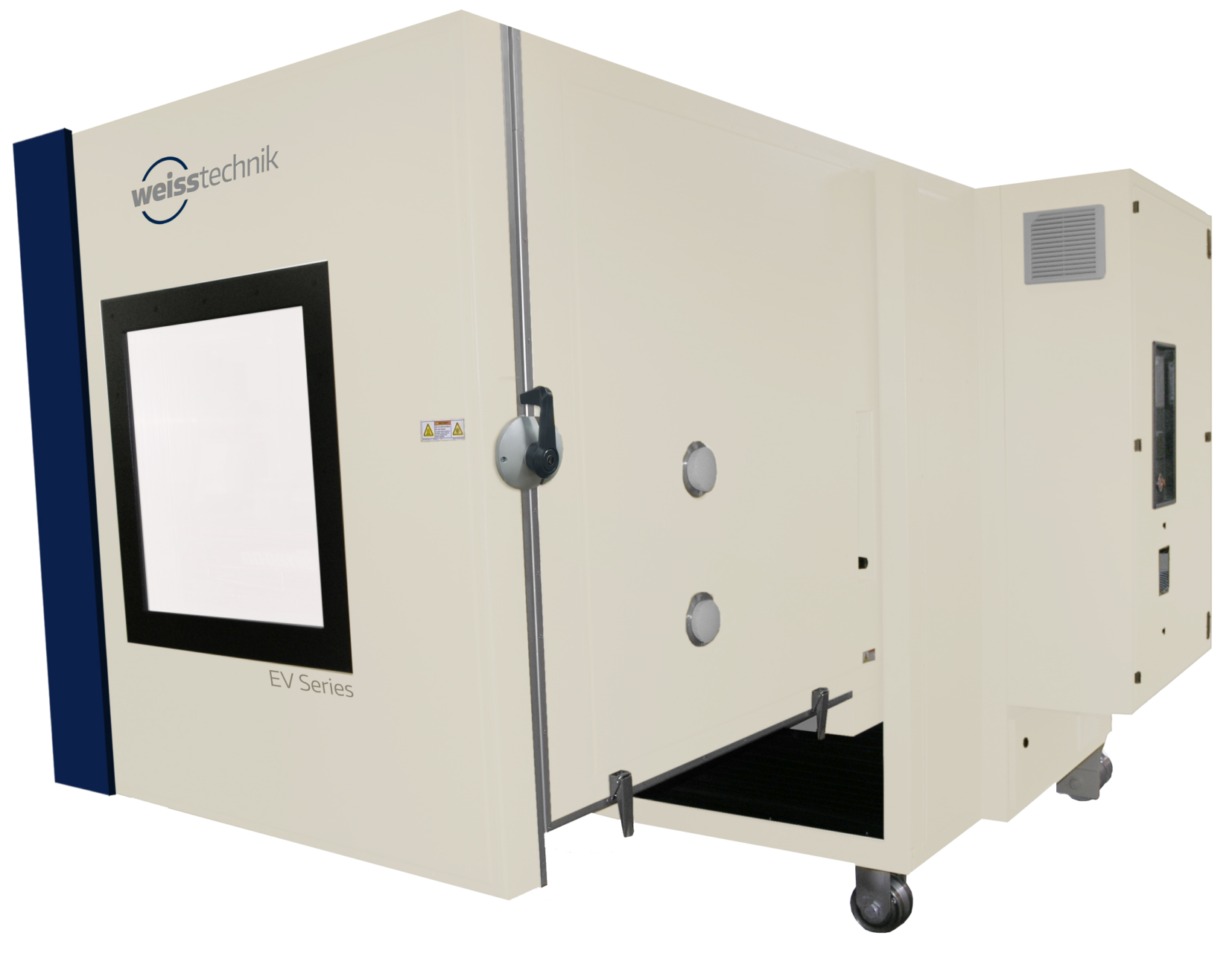

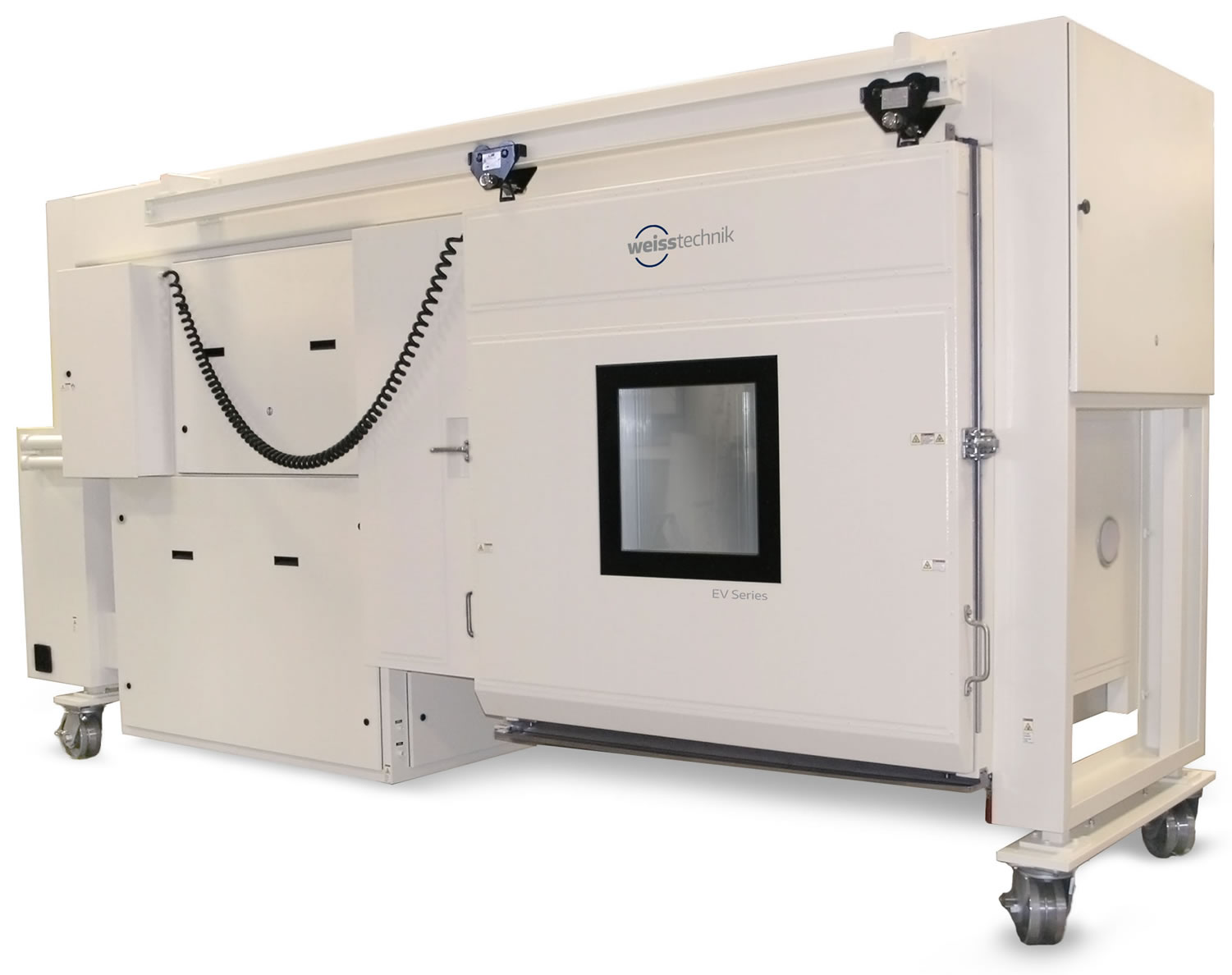

  • Gantry and Cantilever styles available for greater testing flexibility
  • Easy access side panels
  • Multiple door options available
  • LEEF™ (Leading Energy Efficiency Footprint) technology is a high-efficiency refrigeration system that provides unmatched performance; it features optimal temperature and humidity control accuracy for precise testing results, faster ramp rates, and up to 40% energy savings.
  • The innovative WEBSeason® user interface allows you to program, control and monitor your tests at any time and anywhere – even from your tablet or smartphone

Specifications

ModelEV 50EV 81EVH 50EVH 81
Test Space Volume
(Cu.Ft/Liters)
50/141581/230050/141581/2300
Temperature Range-73°C to +180°C
External Width80″ (2032mm)80″ (2032mm)80″ (2032mm)80″ (2032mm)
External Depth102″ (2591mm)112″ (2845mm)117″ (2972mm)132″ (3353mm)
External Height110″ (2794mm)114″ (2896mm)95″ (2413mm)99″ (2515mm)

Product Features

  • Engineered to adapt to all vibration tables in the market
  • Gantry and Cantilever styles available for greater testing flexibility
  • Dual door design available for easy loading/unloading
  • 400 MHz RISC CPU
  • 32MB Intel Strata Flash, 64MB RAM
  • Windows CE.NET 4.2
  • RS232 (built-in) 9-pin D-SUB
  • RS-485/422 (built-in) 25-pin D-SUB
  • Ethernet (built-in) 10/100Mbit RJ45/TP
  • USB Host for keyboard, mouse, printers, etc.
  • USB Device port for PC file transfer
  • Internal CF memory slot for memory expansion 32-1024MB
  • External CF data slot for data capture and extraction
  • 2-inch by 6-inch cable slot
  • 4-inch stainless steel access port with plug
  • Diaphragm and frame assembly, shaker to chamber interface
  • Dual air circulation system with solid stainless steel jack shafts
  • Nichrome wire heating elements with fail safe fusible link
  • Solid state heat switching
  • Adjustable door latch
  • LN2 cooling systems optional

    Refrigeration System:

  • Water-cooled cascade condenser
  • Copper tubing cooling coils with aluminum fins
  • High temperature slphosed or silver soldered joints
  • Semi-hermetic compressors
  • HFC refrigerants

Technical Data

Additional Options

  • Custom Sizes
  • Vertical Lift
  • Humidity
