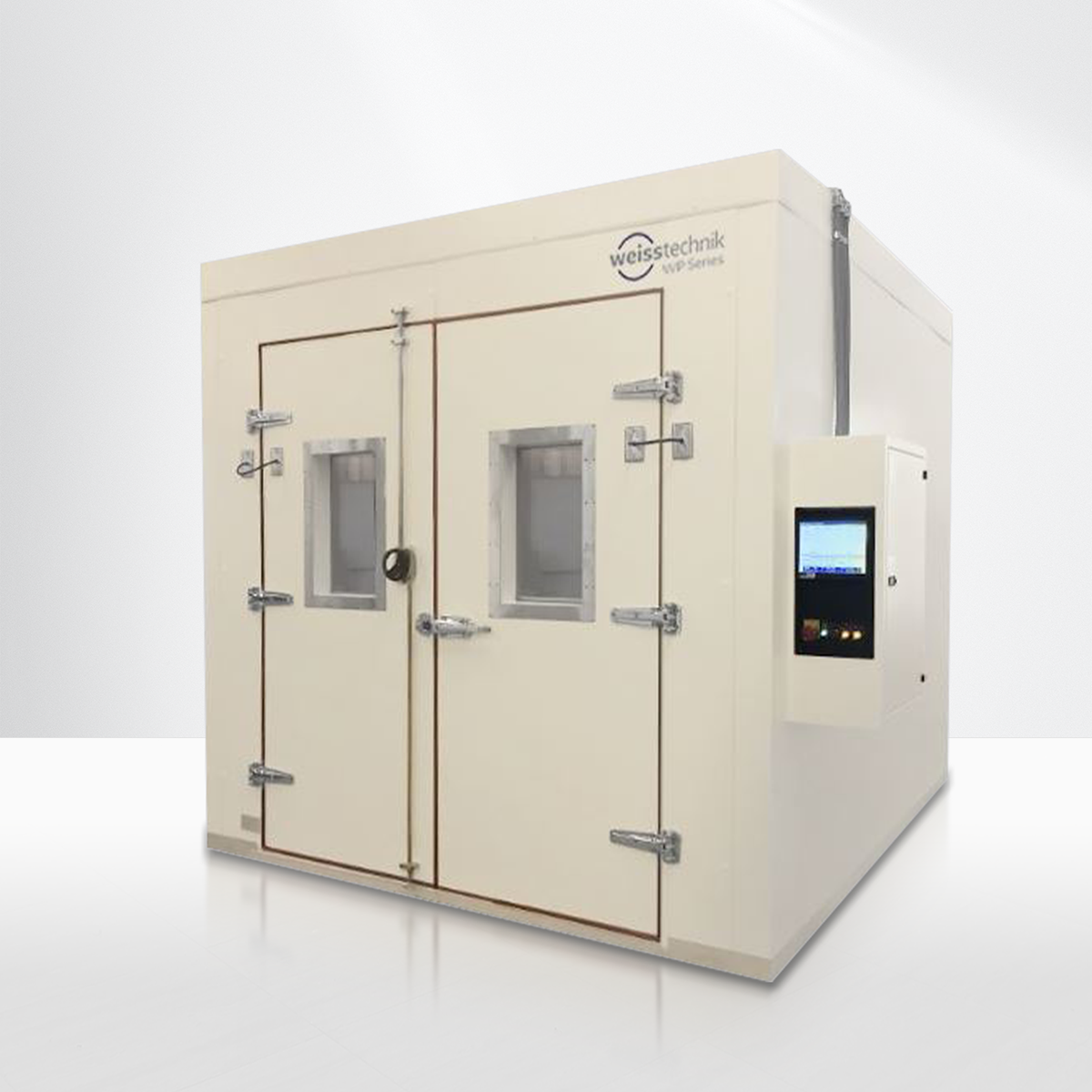

WP Series – Panel Walk-In / Drive-In Test Chamber

Weiss Technik’s Panelized Walk-In and Drive-In Environmental Test Chambers offer a highly versatile and customizable solution for environmental testing across a variety of industries. Our modular chamber design utilizes insulated panels for easy configuration to almost any size making them the ideal choice for testing large products or batches.

In today’s global market, products are exposed to seasonal changes and diverse climatic zones, putting their reliability to the test. The Panelized Walk-In and Drive-In Test Chambers from Weiss Technik allow you to simulate the impact of temperature and humidity on product properties, function, and lifespan. Take your environmental testing capabilities to the next level with Weiss Technik’s Panelized Walk-In Test Chambers. These reliable, customizable solutions deliver the precision and flexibility needed to meet industry standards while ensuring your products are ready for the challenges of the real world.

Why Choose Panelized Walk-In & Drive-In Test Chambers?

  • Pre-fabricated modular panels customized to fit your requirements, offering easy move-in and setup.
  • Easy to service conditioning modules sized to your performance requirements.
  • Solid welded floors available to accommodate heavy product loads.
  • LEEF™ (Leading Energy Efficiency Footprint) features a high-efficiency refrigeration system offering precise temperature and humidity control, faster ramp rates, and up to 40% energy savings.
  • The innovative WEBSeason® user interface offers simple programming and allows you to control and monitor your tests anytime, anywhere, from any device.

Specifications

ModelWP/WPH338WP/WPH534WP/WPH1090WP/WPH1740
Test Space Volume
(Cu.Ft/Liters)
338/9571534/151211090/308651740/49271
Temperature Range-68°C to +85°C
Humidity Range20%RH to 95%RH
External Width86″ (2184mm)106″ (2692mm)129″ (3277mm)153″ (3886mm)
External Depth86″ (2184mm)106″ (2692mm)152″ (3861mm)200″ (5080mm)
External Height104″ (2646mm)104″ (2642mm)116″ (2946mm)116″ (2946mm)

Product Features

  • Nominal 4-inch (102mm), rigid urethane insulation(thicker panels are optional)
  • Multiple Plenum Options for Greater Flexibility
  • Interior lighting provided in vapor-proof fixture with external control switch (specialty lighting systems available)
  • Moisture-Vapor Seal: all joints between panel sections fitted with double gaskets
  • Flush-type door with thermostatically controlled perimeter gasket, heated to remain dry and frost free; standard
  • Clear opening 34-inches (864mm) wide and 78-inches
  • Door hardware includes cam lift, self-closing, chrome plated hinges and a lockable chrome-plated door latch with inside safety release
  • Floor loading of up to 1,200 pounds per square foot. (6,000 pounds available as option)
  • Point loading conditions
  • Optional heavy duty floors sloped to perimeter drains (Recommended for WPH Humidity chambers)

Technical Data

Additional Options

  • Dual air circulation through blowers with solid stainless steel jackshafts
  • Water-cooled cascade refrigeration system
  • Nichrome wire heating elements with fail safe fusible link
  • Solid state heat switching
  • Drive in options available
  • Compatible with four post simulators or dynamometer
  • Solar simulation packages
  • HC/CO monitoring of vehicle under test
  • Complete customized operator interface software packages
  • Complete installation packages
  • Custom sizes available consult with your local salesperson
  • Many options available – contact your local salesperson for complete list
