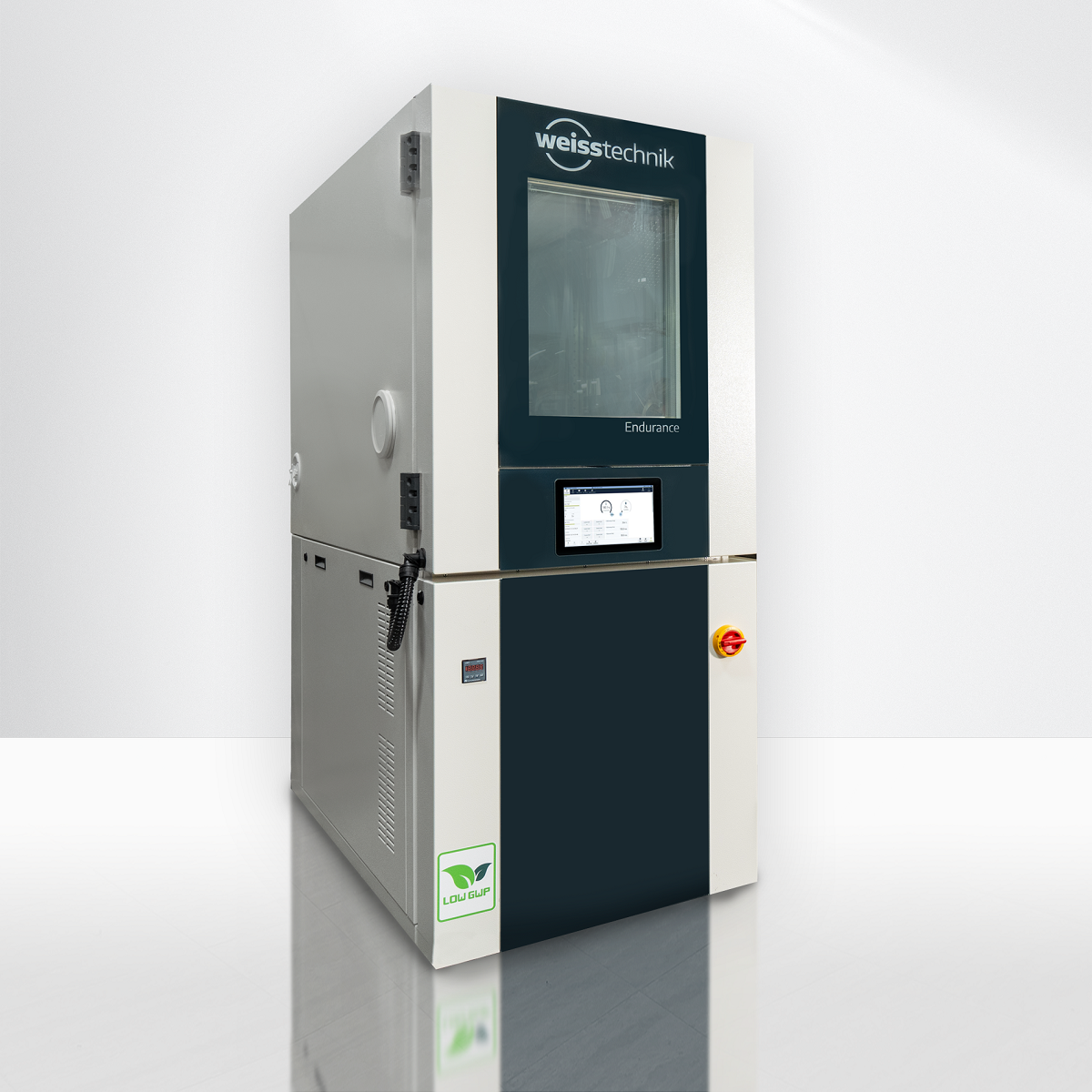

Endurance – Temperature Humidity Test Chamber

The Endurance® Series from Weiss Technik: the Temperature and Humidity chamber that stands alone. Designed and engineered to give you lasting value, performance and reliability for all your testing applications. The intelligently engineered test space design allows for maximum airflow coverage and accurate gradients. With a variety of size options, a small footprint, and its mobile design, the Endurance Series allows for greater testing flexibility and mobility for your testing laboratory.

These Endurance chambers are also in stock! click here.

  • Up to 20% energy savings
  • Tight Temperature Control and Uniformity
  • Quiet Operation
  • Small Footprint
  • Ability to reach 98% RH @ 95ºC
  • Utilizes R-449A Low GWP refrigerant – impacts the environment less

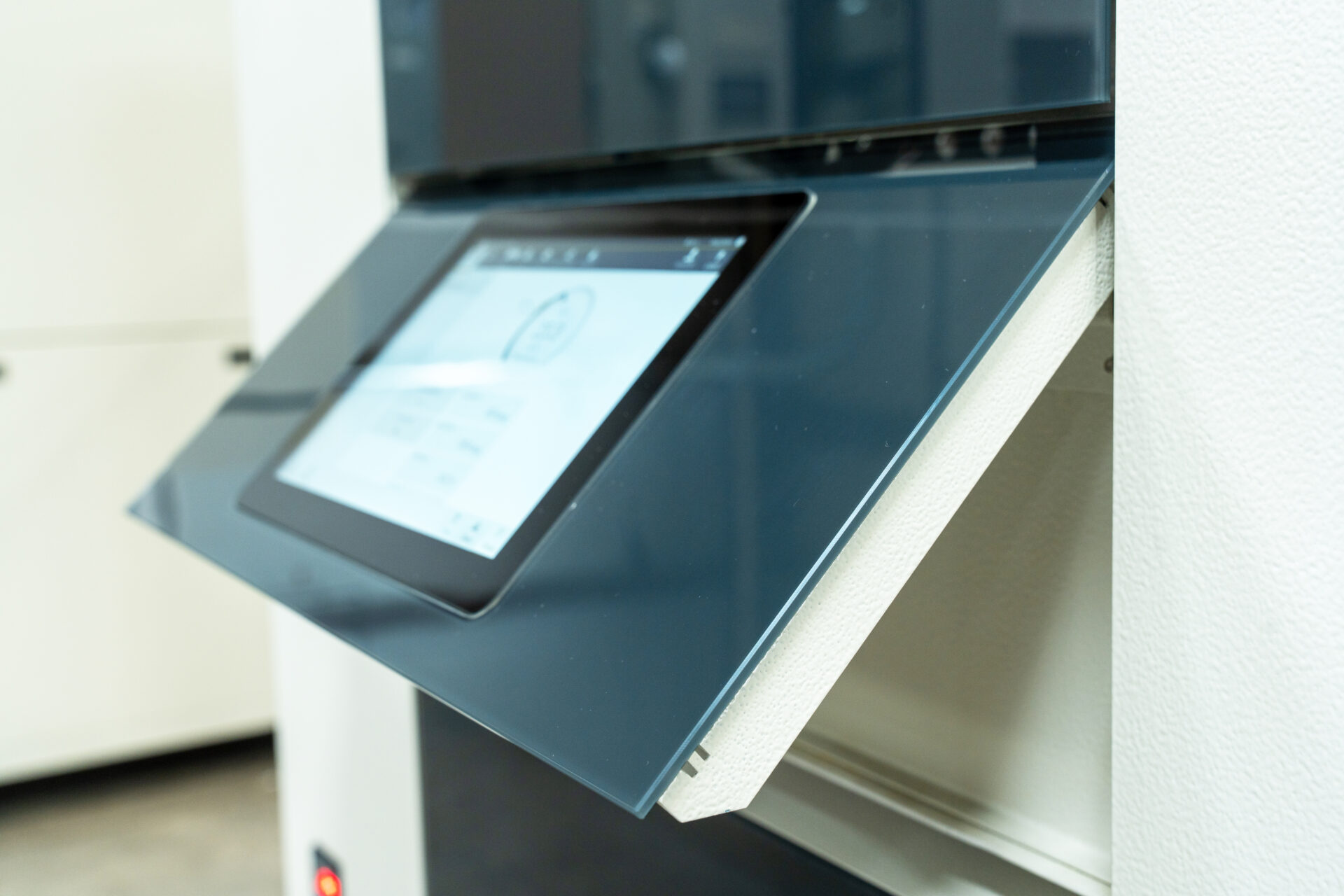

  • 10” touchscreen control with WEBSeason® user interface – program and monitor your tests anytime, anywhere
REQUEST QUOTE

Specifications

ModelENDH180ENDH340ENDH600ENDH1000ENDH1500
Test Space Volume
(Cu. Ft./Liters)		7/19012/33521/60035/99054/1540
Temperature Range+180°C to -40°C (+356°F to -40°F)+180°C to -40°C (+356°F to -40°F)
+180°C to -70°C (+356°F to -94°F)
Humidity Range10% to 98%
External Width36″ (915mm)36″ (915mm44.8″ (1138mm)56.1″ (1425mm)56.1″ (1425mm)
External Depth59.7″ (1516mm)75.3″ (1660mm)66.7″ (1695mm)72.7″ (1847mm)93.4″ (2372mm)
External Height78.8″ (2002mm)78.8″ (2002mm)86.7″ (2202mm)86.7″ (2202mm)86.7″ (2202mm)



Product Features

  • 5-pane heated window
  • Energy efficient
  • Cable Notch
  • Multi-level high/low temperature protection feature
  • Anti-condensation feature – keep your product protected
  • ISO9001, A2LA and UL508A Certified
  • Quiet operation
  • Left hinged door
  • Easy open, lockable door handle can be operated with one hand
  • Highly visible main power switch located on front panel provides added safety
  • Two 5” access ports
  • Easy fill water reservoir
  • Convenient connectivity – USB, Ethernet, and dry contact for test specimen deactivation
  • Mobile design
  • Casters and adjustable leveling legs
  • Heavy-duty, slide-out shelves
  • Easy access panel doors
  • Tight seal double gasket
  • Larger 10” touchscreen control with WEBSeason® user interface – program and monitor your tests anytime, anywhere
  • S!MPATI System Control enables complete chamber control and remote operation of up to 99 chambers simultaneously

Technical Data

Additional Options

  • Simpati
  • Simpati Time labs
  • Additional ports, 2”, 3” & 5”
  • Additional shelves
  • Valve & Flow meter for customer dry air purge or GN2
  • Dry air purge, 5SCFM
  • Humidity water demineralizer filtration system
  • Demineralizer replacement cartridge
  • Solid state humidity sensor
  • RS-232 interface
