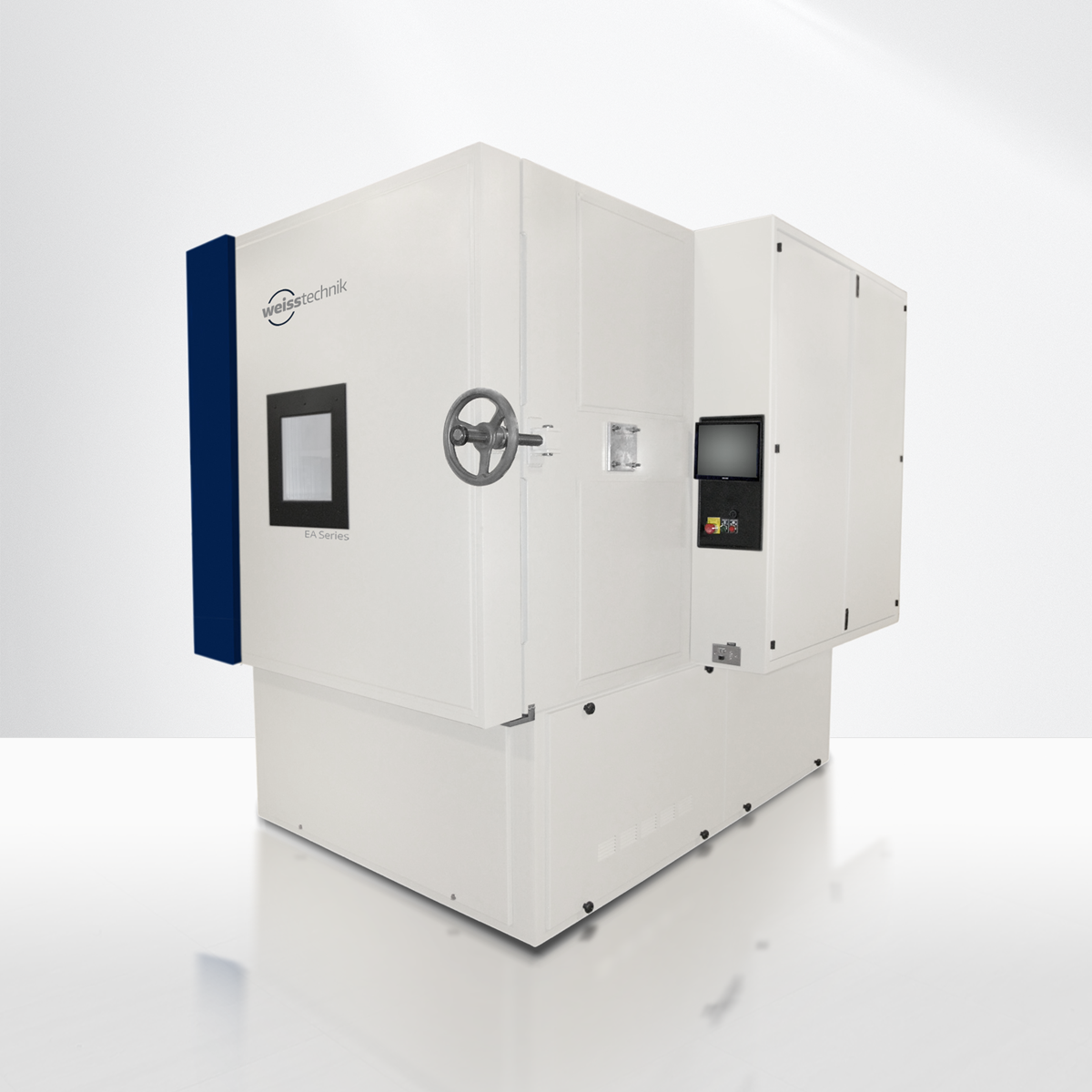

EA Series Altitude Test Chamber

The EA Series Altitude Test Chambers are expertly designed to simulate real-world conditions for products exposed to varying altitudes and temperature extremes. Capable of replicating altitudes up to 100,000 feet, these chambers allow users to control both temperature and humidity, providing a comprehensive testing environment. This combination is essential for evaluating the performance and reliability of components in industries such as aerospace, defense, automotive, and electronics, where products must endure significant pressure changes and climatic variations.

We offer vast experience designing altitude chambers with pre-engineered sizes from 18-55 cu. ft. and custom-designed solutions to meet your specific testing needs. The chambers are built to maintain precise control over environmental conditions, ensuring accurate altitude simulation to help identify potential failures early in the product development process. Our altitude chambers feature robust construction and may be designed with internal or external pressure members. These chambers not only deliver high performance but also ensure longevity and ease of maintenance, making them essential for manufacturers committed to quality assurance and product reliability.

Why choose EA Series Altitude Test Chambers?

  • Designed to simulate altitude conditions up to 100,000 feet.
  • Simultaneous temperature/altitude testing from site altitude to 65,000 feet.
  • Optional humidity testing at site altitude level.
  • Rugged construction with heavy-duty door latch for added safety.
  • LEEF™ (Leading Energy Efficiency Footprint) features a high-efficiency refrigeration system offering precise temperature and humidity control, faster ramp rates, and up to 40% energy savings.
  • The innovative WEBSeason® user interface offers simple programming and allows you to control and monitor your tests anytime, anywhere, from any device.

Specifications

ModelEA/EAH 18EA/EAH 37EA/EAH 55
Test Space Volume
(Cu. Ft./Liters)
18/51037/104855/1557
Heating Rate Up to 0.5°C/minUp to 0.5°C/minUp to 0.5°C/min
Cooling Rate Up to 1°C/minUp to 1°C/minUp to 1°C/min
Temperature Range+180°C to -70°C (+356°F to -94°F)
Altitude RangeUp to 100,000 ft (30.48 km)Up to 100,000 ft (30.48 km)Up to 100,000 ft (30.48 km)
Humidity Range10% to 98%
External Width52″ (1321mm)60″ (1524mm)60″ (1524mm)
External Depth94″ (2388mm)94″ (2388mm)114″ (2896mm)
External Height95″ (2413mm)103″ (2616mm)103″ (2616mm)

Product Features

  • Dual air circulation system with solid stainless steel jack shafts
  • Nichrome wire heating elements with fail safe fusible link
  • Solid state heat switching
  • Full front opening door
  • Heavy duty hand wheel actuated door latching
  • 8” thick walls
  • Internal pressure member construction
  • Solid state altitude sensor
  • Interior light
  • ETL (UL STD 508A) approved main power panel
  • Instrumentation
  • Precise Touchscreen Programmer/Controller
  • Digital indication of set-point and temperature
  • Type “T” thermocouple sensor
  • RS232 and RS422 digital communications
  • Event or alarm outputs
  • Guaranteed soak and automatic hold
  • Refrigeration System
  • Water cooled condenser
  • Copper tubing cooling coils with aluminum fins
  • Cascade refrigeration system
  • High temperature silphosed or silver soldered joints
  • Semi-hermetic compressors
  • HFC refrigerants

Technical Data

Additional Options

  • Stainless steel wire shelves
  • Heavy duty casters
  • Running time meter
  • Refrigeration gauges
  • Main power electrical disconnect switch
  • Low watt density sheath heaters for temperature control above 35,000 ft.
  • 3” I.D. weld neck access port with insulating plug and blank flange
  • Refrigeration section quiet package
  • Dry air purge
  • Chart recorder
  • Custom sizes available consult with your local salesperson
  • Many options available – contact your local salesperson for complete list
