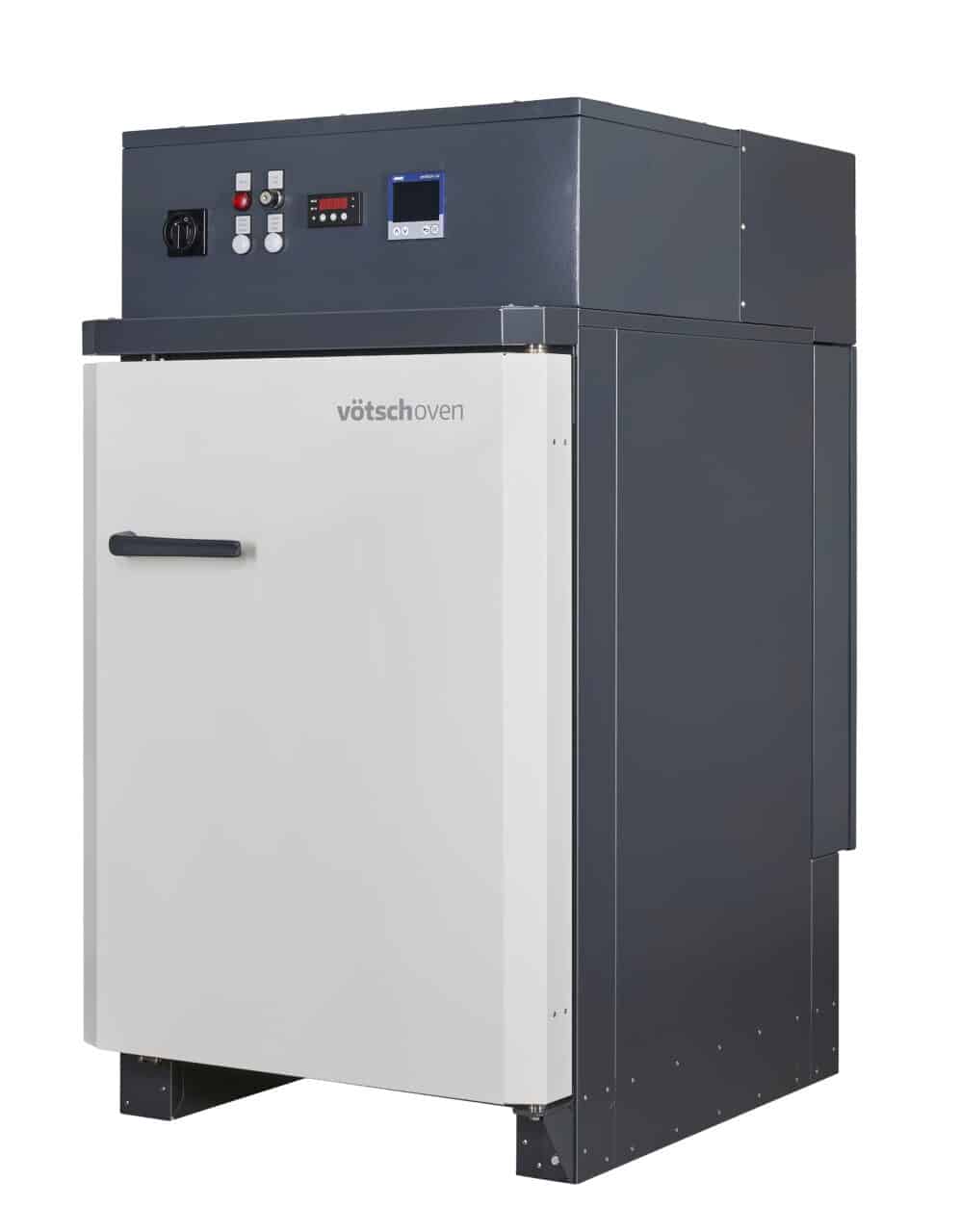

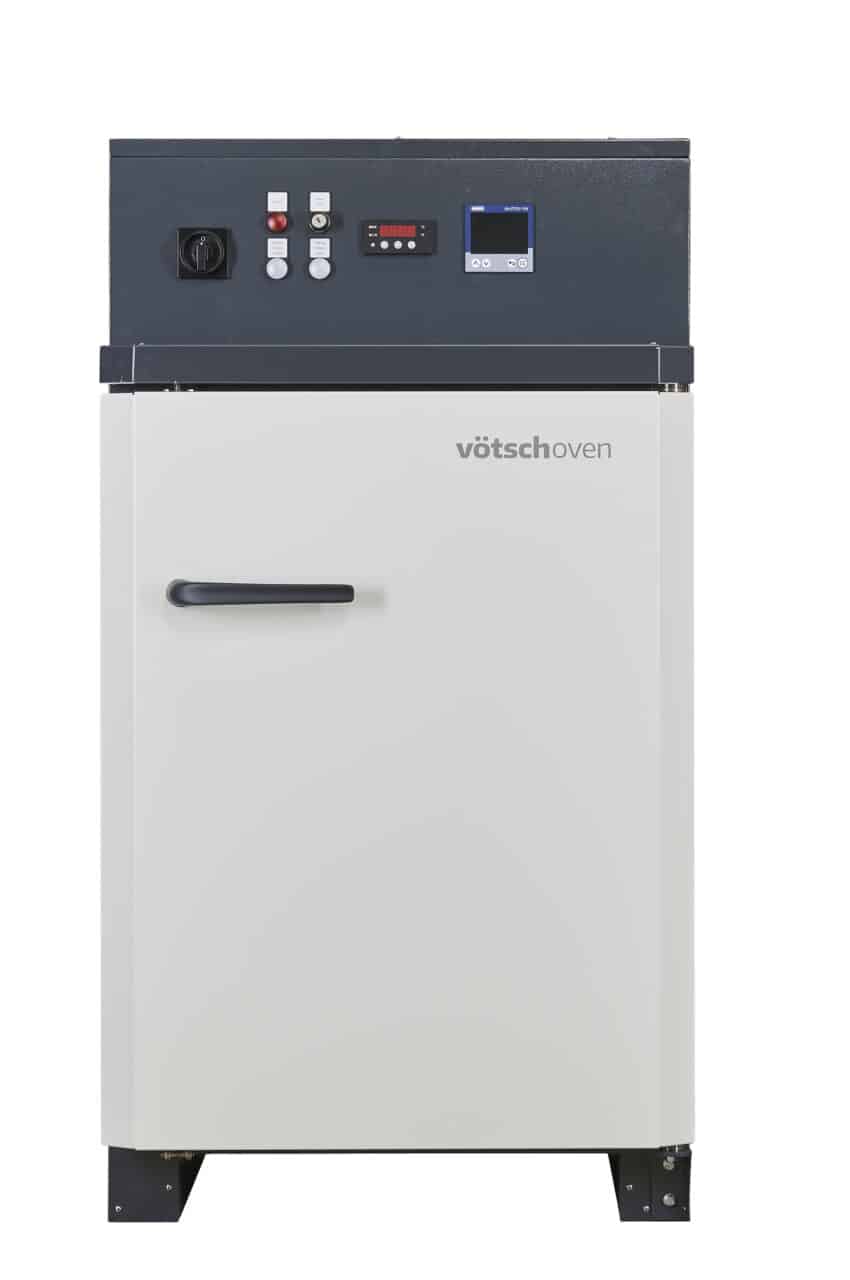

Explosion Resistant Drying Oven VFT With ATEX Type Examination

Our small explosion resistant heating and drying oven is ideal for use in manufacturing and laboratories.  VFT 60/90 drying ovens provide safety concept of primary and secondary explosion protection measures for safe heat treatment processes in areas of the chemical, pharmaceutical, paint and basic material industry. The oven is electrically heated and designed according to the fresh air principle.

These ovens are suitable for solvents in the T1, T2, T3 and T4 temperature classes and in the IIA and IIB explosion groups. The useful space is category 2G/zone 1 conformity and allows insertion of solvents almost without limitation.  Ovens conform externally to the category 3G and is suitable to be set up in zone 2.


  • Small footprint
  • Precise temperature control throughout the entire workspace
  • Permanent monitoring of exhaust air flow
  • Switch cabinet enclosed with pressurized air
  • Automatic emergency purging
  • Meets ATEX safety directives
  • All explosion protective measures are checked for technical safety and certified (Declaration of Conformity, TUV).

Product Features

  • Safety temperature limiter (STL)
  • Power regulated by semiconductor relay
  • Inner casing of stainless steel, material 1.4301
  • Outer casing galvanized sheet steel and painted
  • Bottom designed for transport by a forklift

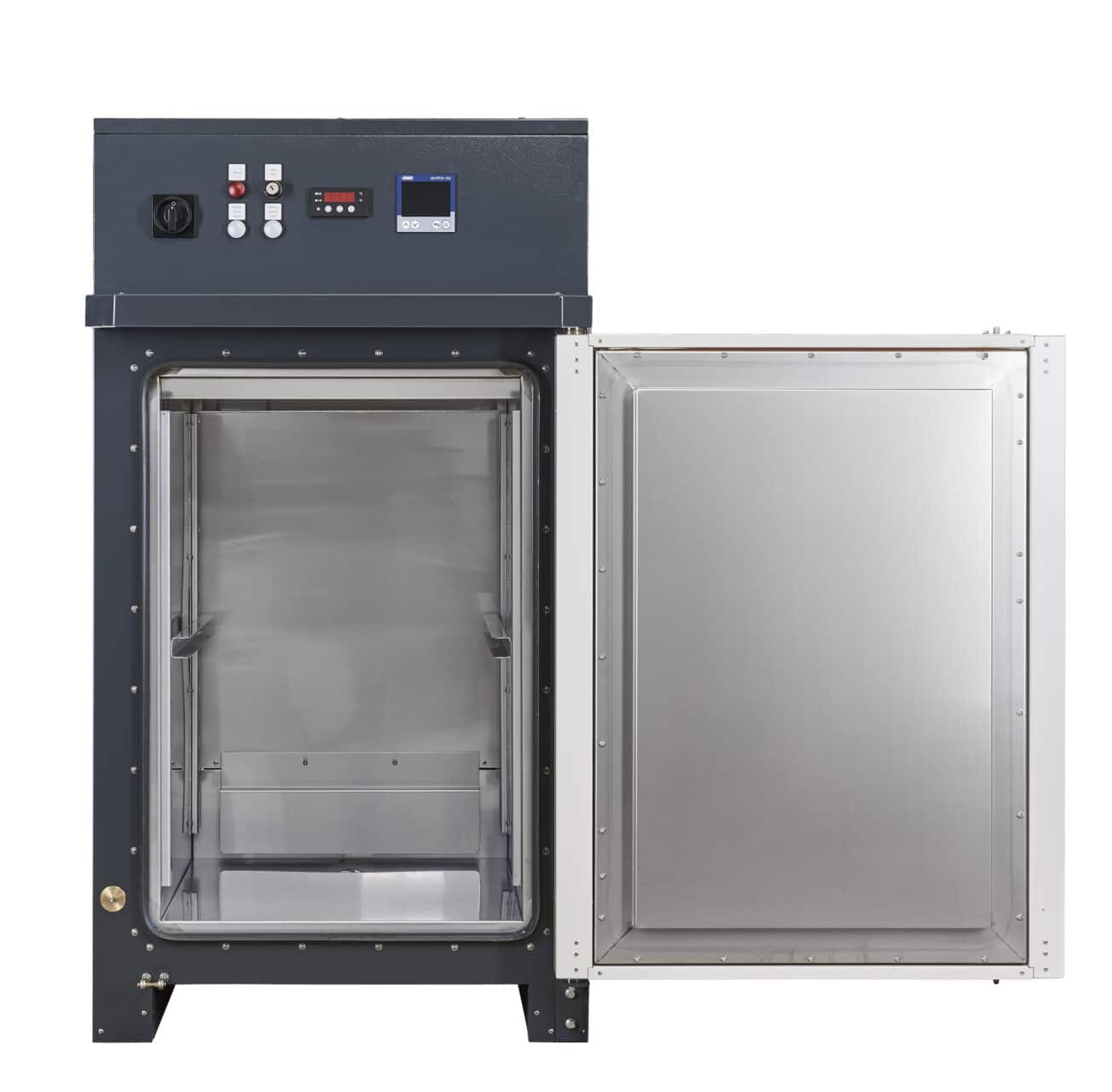

  • Multi-position grid rails to accept wire mesh shelves
